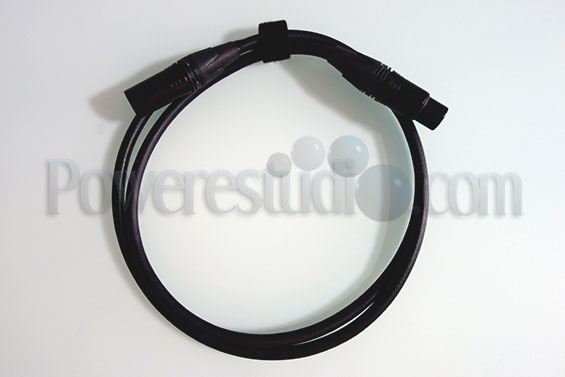

Amazing Cable for Microphones, Analog lines or Aes-Ebu
Single Assembled:
XLR or JACK
Neutrik Gold Connectors
Soldered with WBT Silver Tin
Studio / Broadcast / Hi-Fi
110 Ω AES – EBU
Low capacitance
Oxygen free copper
For generic audio use – Line, Mic level, AES/EBU
Sommer Carbokab Specifications
- Properties: Digital 110 Ω AES / EBU
- Properties: Analog
- Properties: OFC oxygen free copper
- Application area: Mobile outdoor / indoor
- Application area: Installation
- Application area: Studio / Broadcast
- Application: Microphone Cable
- Colour: black
- Colour detailed: black
- Signal transmission: symmetrical
- Jacket material: S-PVC
- Jacket Ø: 7,6 mm
- Number of Channels (audio): 1
- Inner conductor (audio): 2
- Inner conductor (audio): 0,25 mm²
- Inner conductor Ø (audio): 0,56 mm
- AWG (audio): 23
- Shielding: Copper braiding tin-plated 95% + AL-fleece + filler strand
- Copper strands (audio): 65
- Copper strand Ø (audio): 0,07 mm
- Conductor insulation material: HD-PP
- Conductor insulation Ø: 1,55 mm
- Weight per 1 m: 75 g
- UV-resistant: yes
- Fire load per m: 0,22 kWh
- Style variant: round
- Shielding factor: 100 %
- Packing: 100 m, bulk stock
- Temperature min.: -25 °C
- Temperature max.: 70 °C
- Width: 7,6 mm
- Height: 7,6 mm
- Capac. cond./cond. per 1 m (audio): 46 pF
- Capac. cond./shield. per 1 m (audio): 90 pF
- Impedance: 110 Ω
- Insulation resist. per 1 km: 0,2 GΩ
- Insulation resist. per 1 km (audio): 0,2 GΩ
- Conductor resistance per 1 km: 78 Ω
- Shield. resistance per 1 km: 10 Ω
- BPVo-Euroclass: Fca
SOMMER CABLE has developed the new SC-Carbokab 225 with a conductor smoothing of highly compressed carbon that is directly applied to the concentrically stranded litz wires. It offers the same electrical benefits like a solid wire, yet stays flexible and guarantees consistent, excellent values. The good transmission properties of the SC-Carbokab 225 also provide an absolutely linear sound image over long distances of up to 200 metres.
The shielding with 100 % optical coverage (AL fleece + copper mesh screen) is important, because you will hardly find more interference signals coming from peripheral units (effects devices, computers, synthesizers, etc.) than in the professional studio.
For the insulation we use a special HD-PP to ensure lowest capacitance values. With this cable you are “state-of-the-art“ and can avoid tiresome “esoteric“ discussions in the future!.
Solid wires are readily used as inner conductors, with enhanced conductivity of the surface layer and a stranding technique for improved audio transmission. This is only true in theory, because a solid wire has a lot of drawbacks. It is so hard that the insulation can be damaged even with little movements, and it is barely ductile which means that already with slight bendings the Cu surface can be bulged. Tensile forces acting upon the connector pins must not be underestimated either.
Application:
- Highly professional studio and installation technology
- Demanding OB van technology for radio and broadcasting
- First-class hifi connection (red and white conductors on pin 1, separate shielding)
